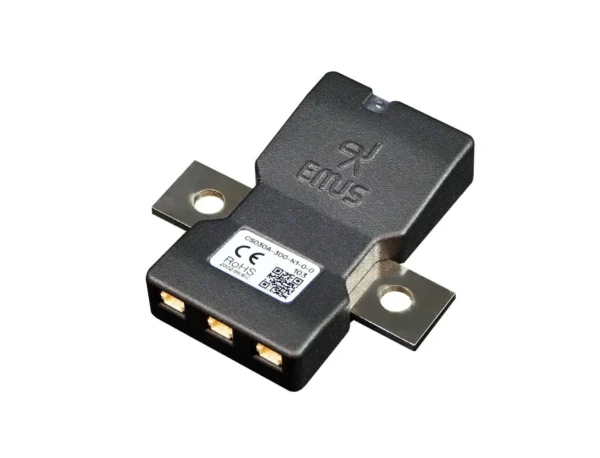

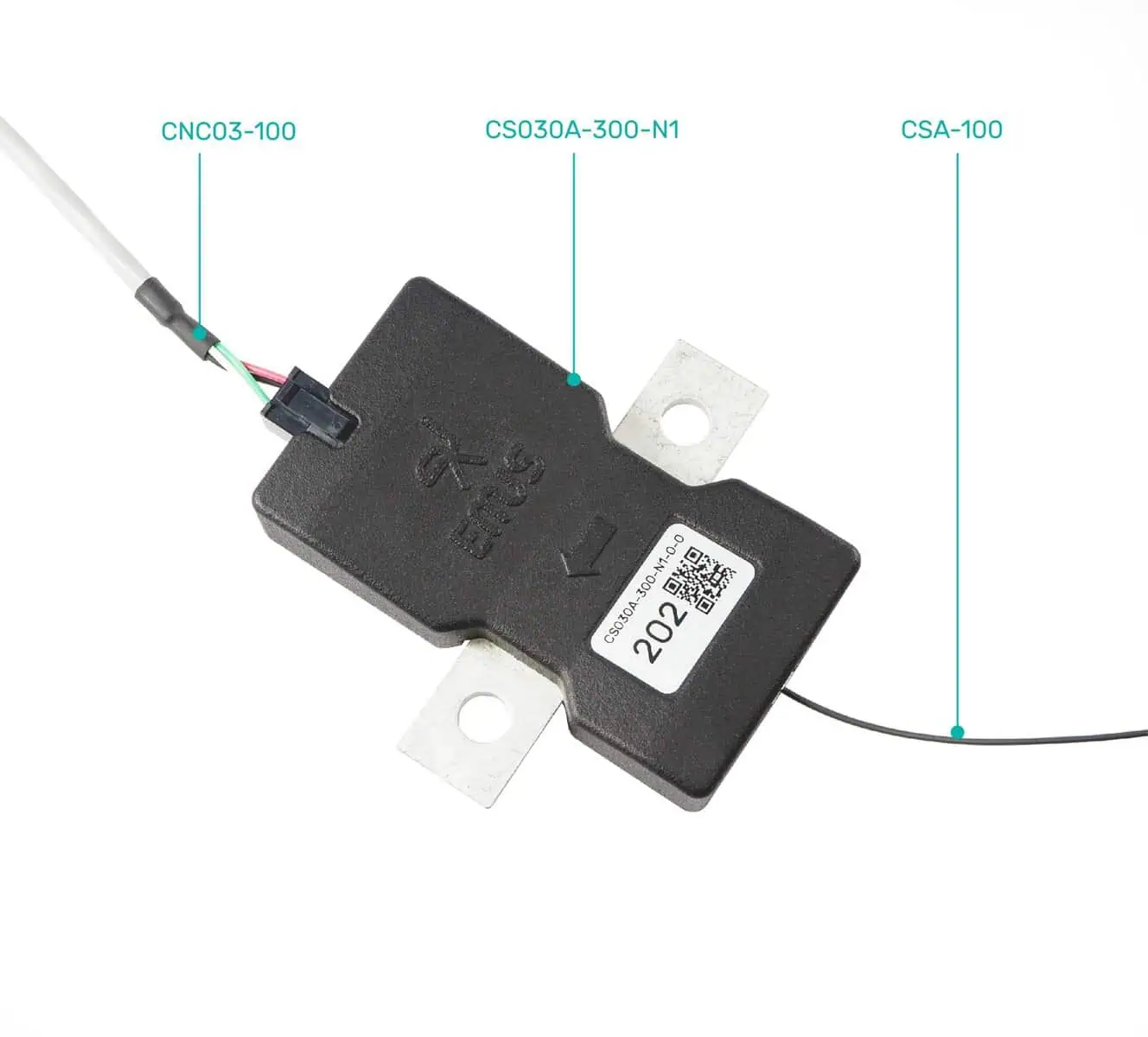

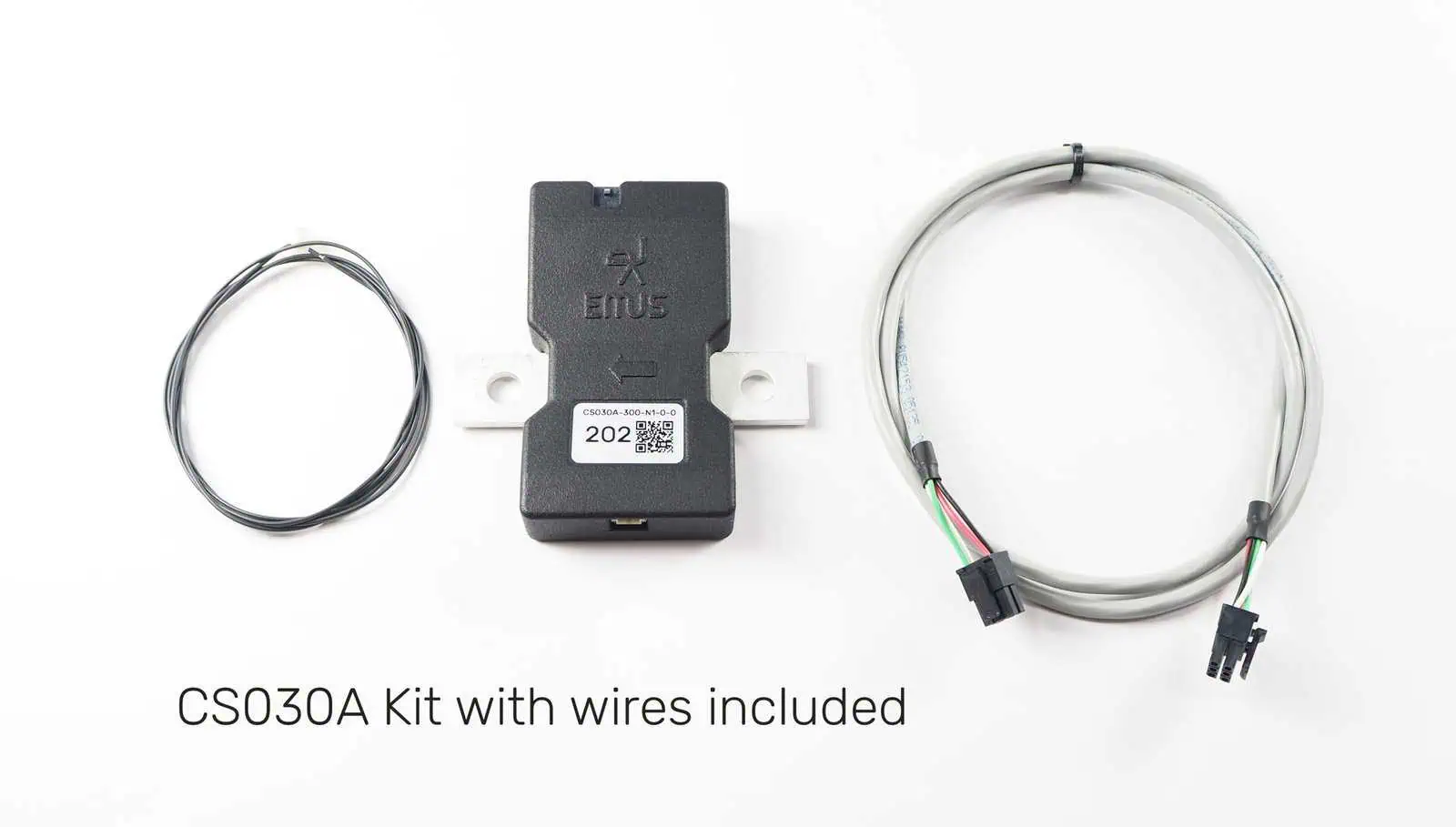

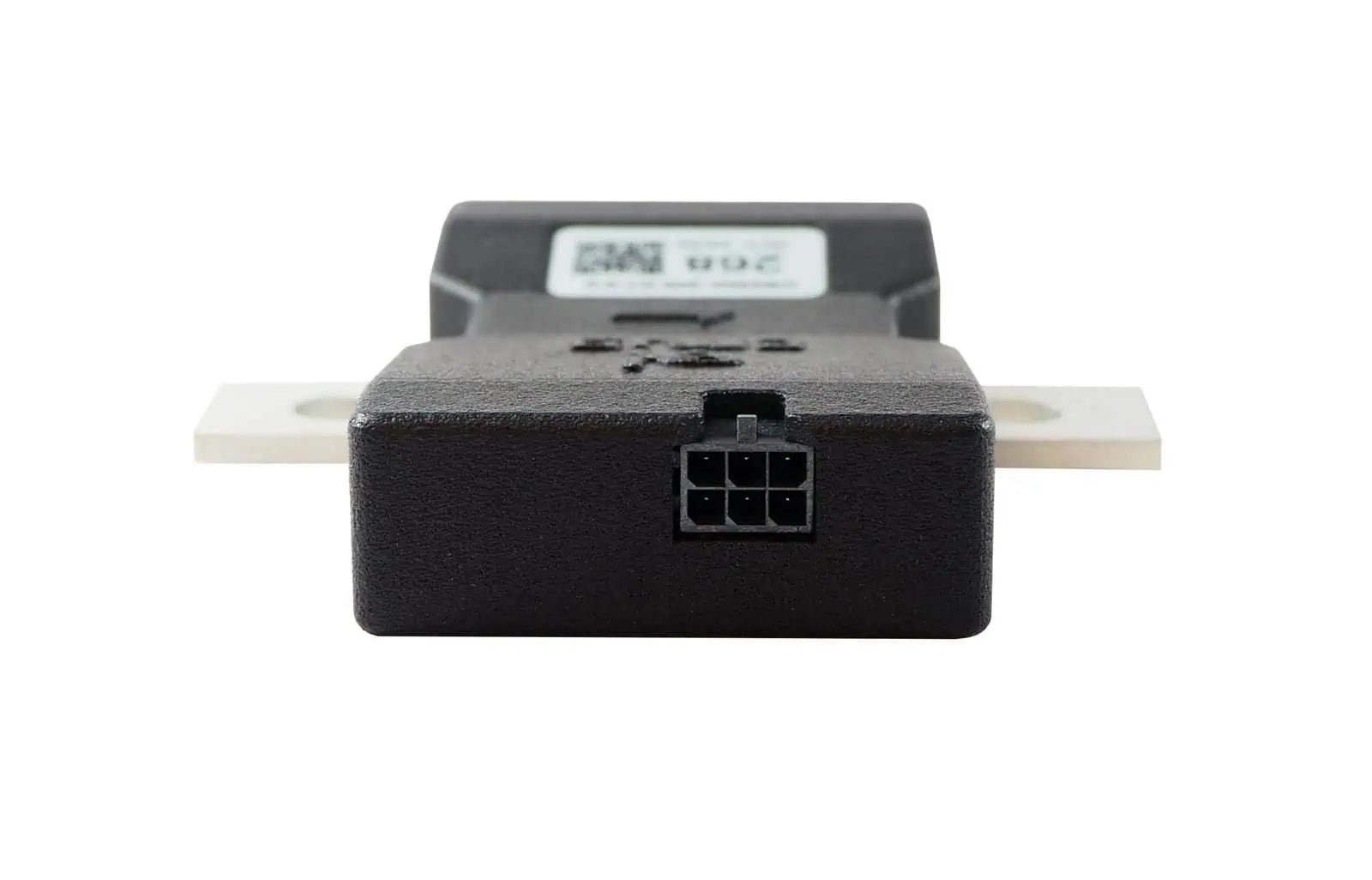

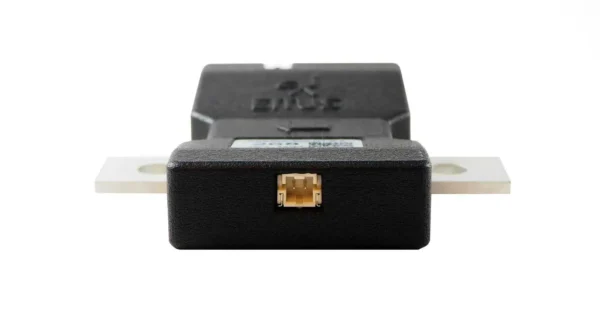

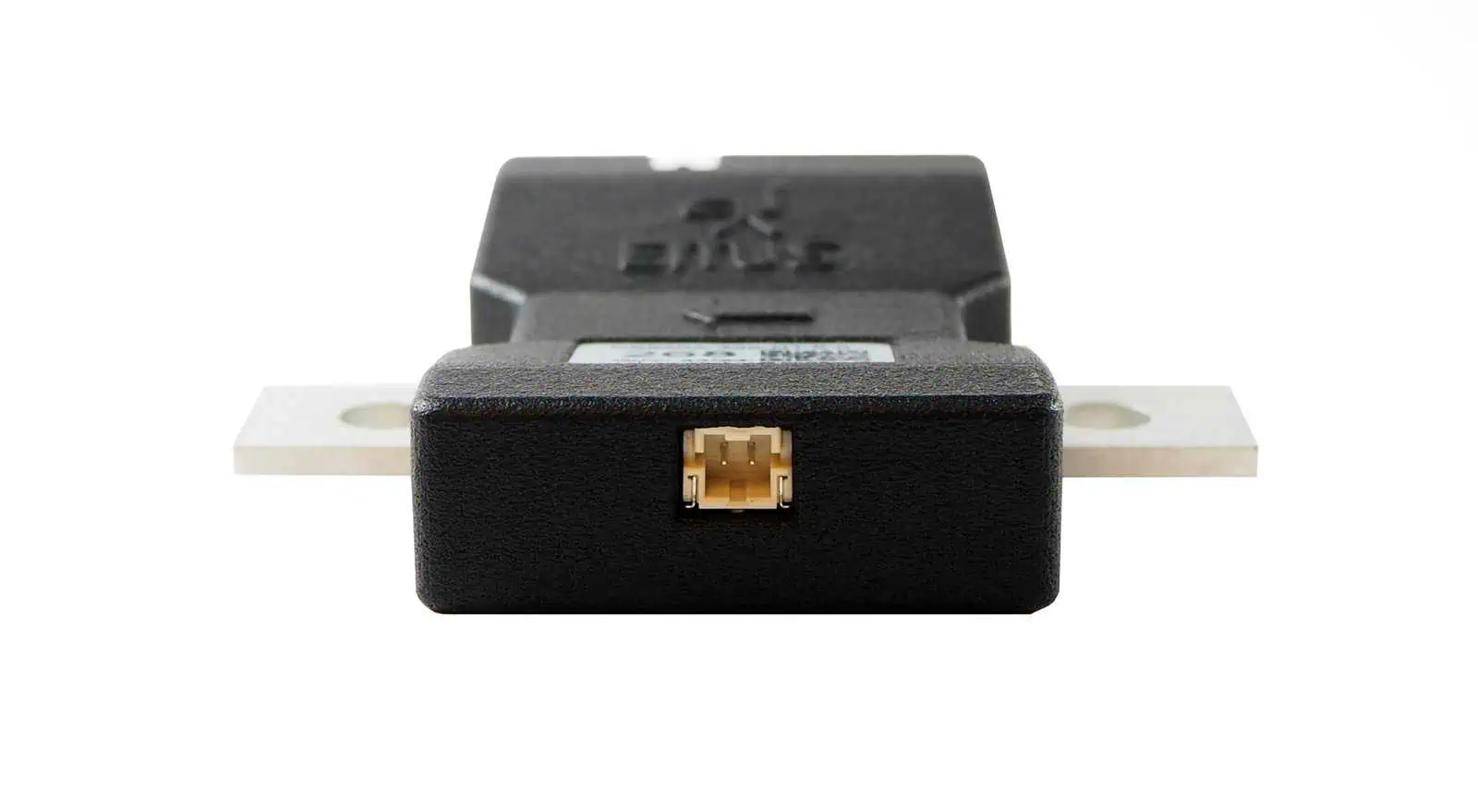

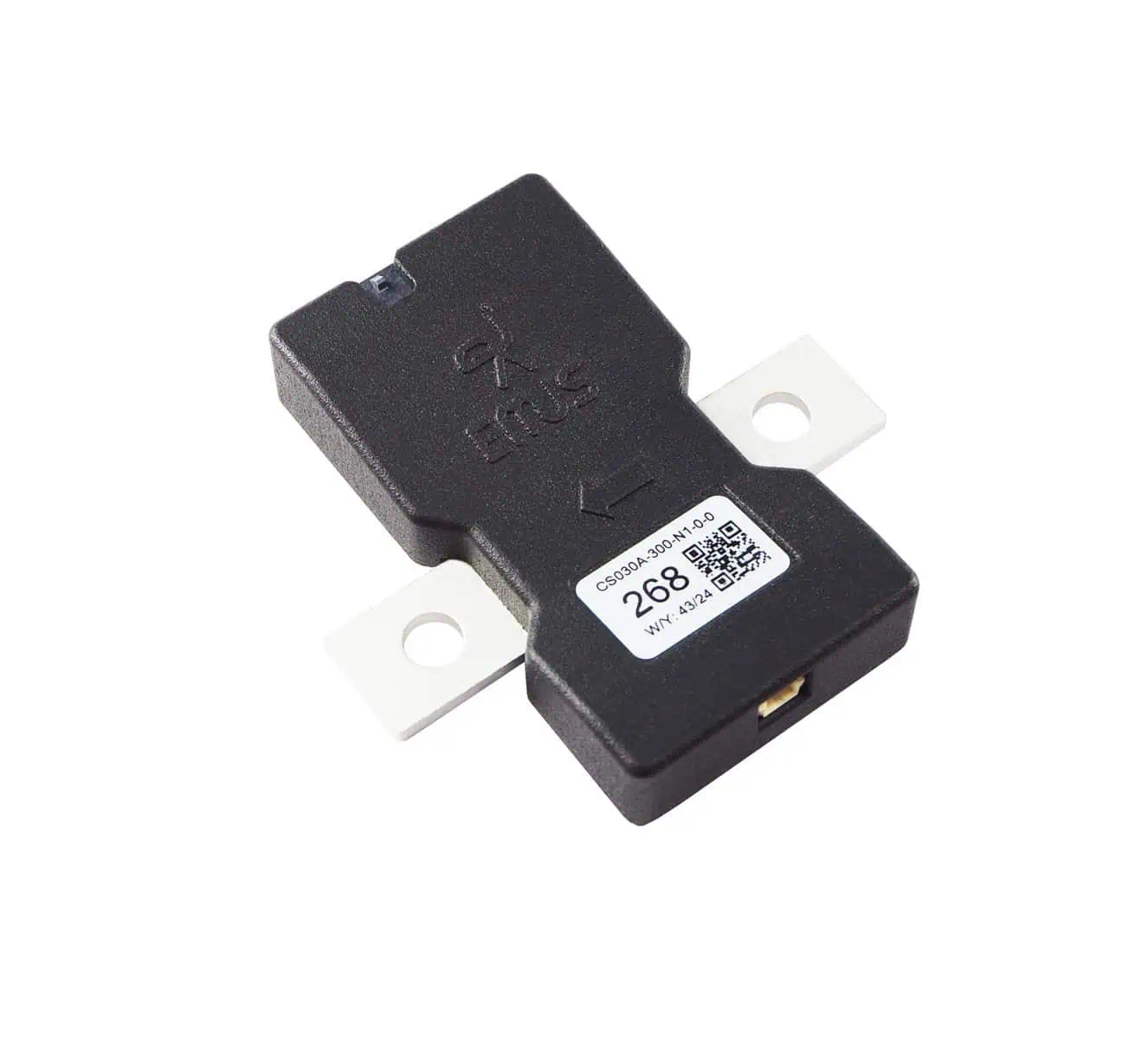

EMUS CAN Current Sensor is a high accurate device used to measure currents with high precision. It replaces an interconnecting bus bar, and due to the galvanic isolation between the sensor and the conducting part, it can be installed anywhere in the battery pack between two adjacent series-connected cells. The current sensor measures the current passing through it and communicates by CAN messages with the Control Unit. It also includes 1 or 3 voltage ports depending on your needs.
NOTE: CS030A-1K-x-x / CS030A-2K-x-x and Contactor Control are under development
Specifications:
Nominal current range ±300A
Maximum peak current (1min) up to ±400A (in development 1000A version)
Maximum peak current (15sec) up to ±650A
Resolution 1mA
Typical current measurement error ±0.35%
Maximum offset 15mA
Maximum safe input voltage ±1500V
Isolation voltage** 850VDC
CAN speed 250kbit/s or 500kbit/s
Default communication period 100ms
Supply voltage 6 – 70VDC
Current consumption sleep mode 68μA@12VDC / 44μA@24VDC
Wake up GPI voltage input 6 – 70VDC
Recommended ambient temperature usage range* -30 to +55ºC
Typical voltage measurement error*** ±0.1% + 2 digits
IP rating IP42
Dimensions: 86.5x84x17.2 mm
Mounting holes: M8.3 (version CS030A-300A-(P1/N1)-X-X)
* Under constant nominal current. Maximum temperature might differ on bus bar heat transfer properties and resistance
** Recommended maximum battery voltage
*** Voltage measurements below 15V may have lower accuracy
