Emus BMS Cell Modules are the single cell controllers that measure cell voltage and provide means of controlled dissipative balancing. Each Cell Module can also measure its own temperature, and is equipped with a special serial interface for communication with the main controller.

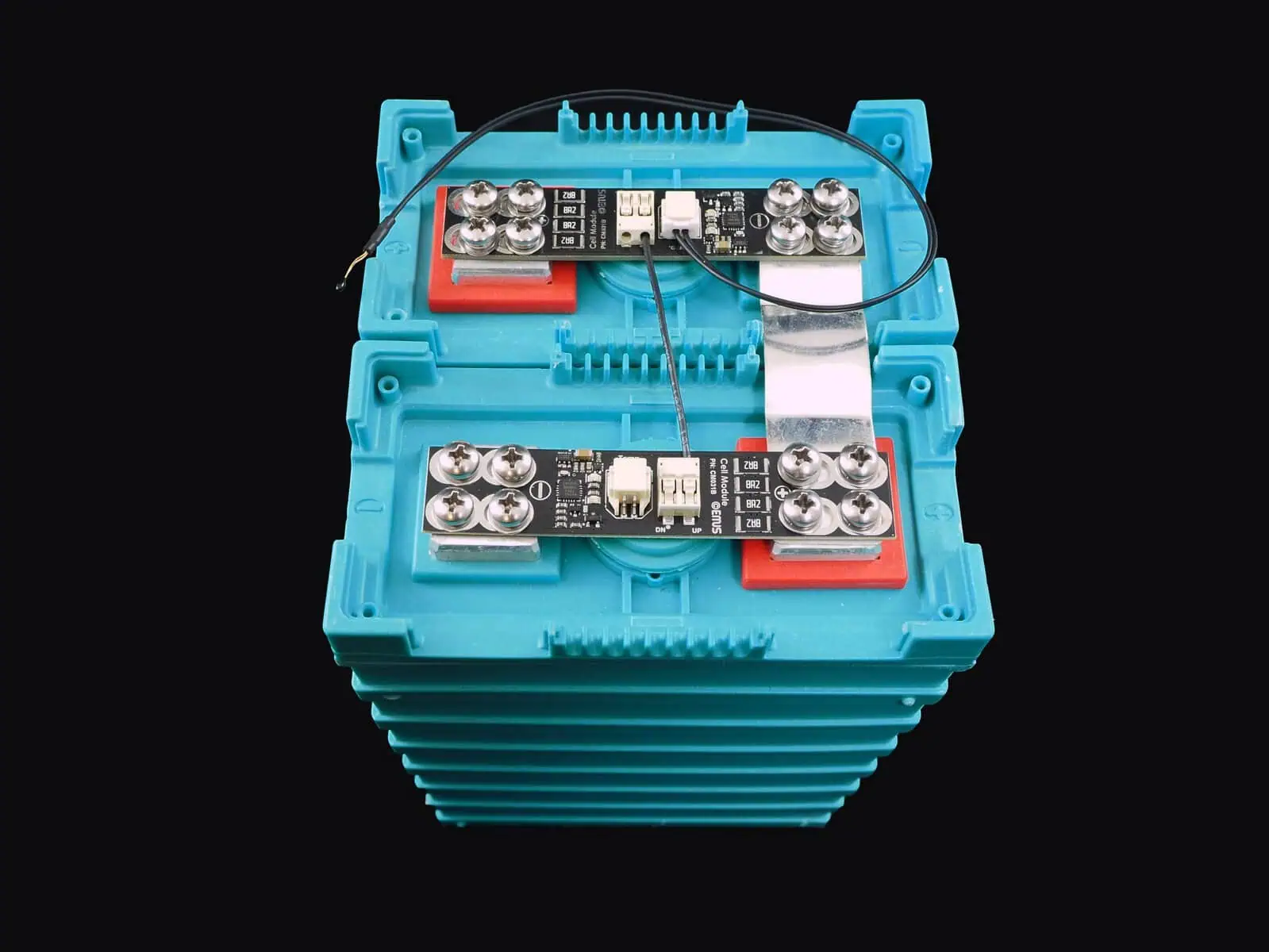

The GBS model is designed specifically for GBSLFMP100AH and GBS100BF cells.
Specifications:
Shunt characteristics:
– RTOT= 2.05Ohm;
– PMAX= 4W;
Max balancing current: 1.4A (limited by PMAX);
Operating voltage: 2.0V – 4.55V;
Operating temperature: -40°C to +80°C;
Max balancing current: 1.4A (limited by PMAX);
Operating voltage: 2.0V – 4.55V;
Operating temperature: -40°C to +80°C;
Voltage measurement accuracy: ±10mV;
Temperature measurement accuracy: ±5°C;
Dimensions: 92×19.3×7.95 mm;
Temperature measurement accuracy: ±5°C;
Dimensions: 92×19.3×7.95 mm;
Distance between holes: min. 67mm; max. 81mm;
Wire length: 100mm;
Mounting hole: M5.2.
Wire length: 100mm;
Mounting hole: M5.2.
