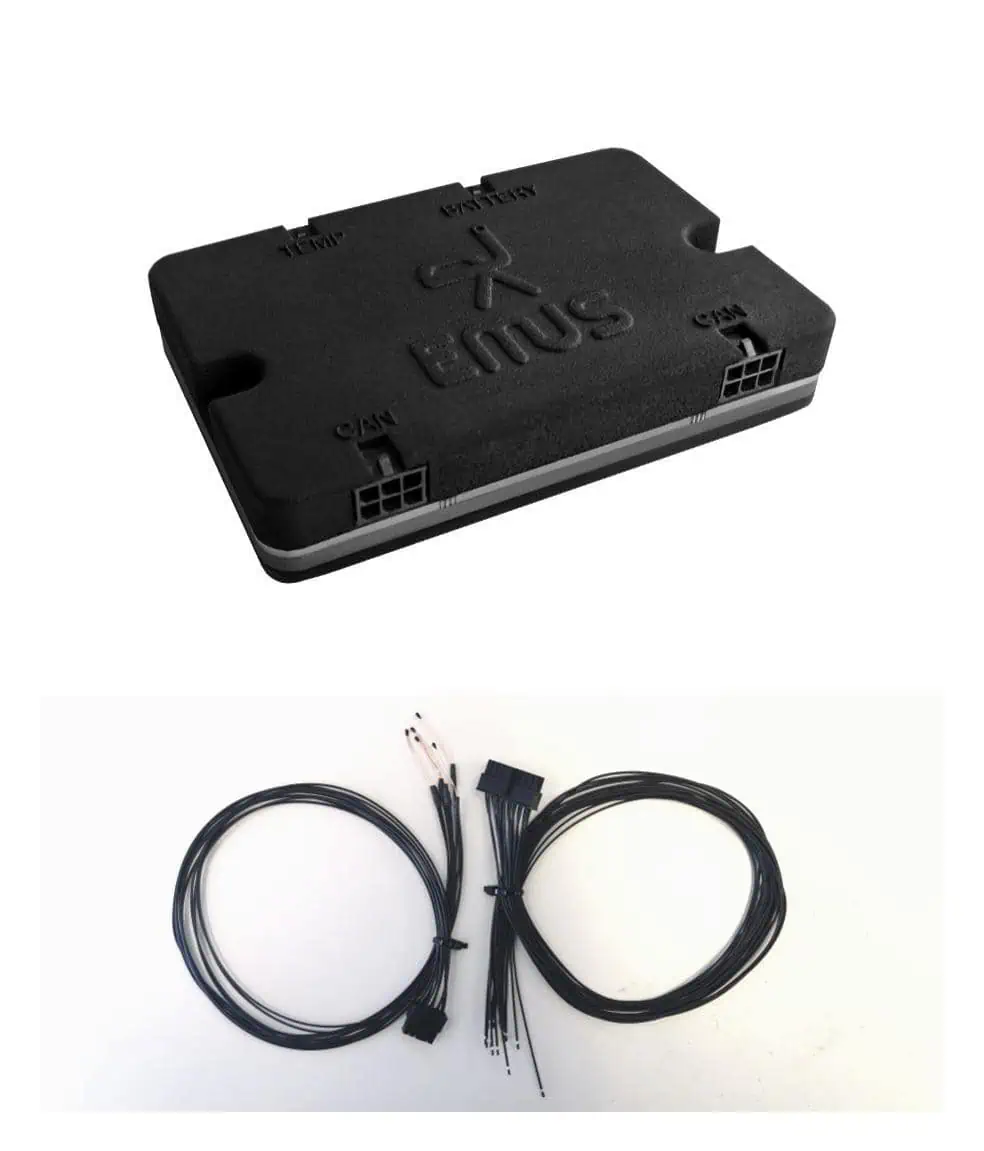

EMUS Centralized Cell Group Module (CCGM) is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors for easy BMS system assembly and integrated proprietary EMUS software allows data transfer within 100ms frequency. It also have 5 external temperature sensors to monitor ambient temperature.
Each CCGM is capable to manage from 6 up to 16 lithium cells and total 28 CCGM units can be connected in series, parallel or mixed topology. Meaning with one Control Unit client is capable to monitor up to 448 cells battery pack.

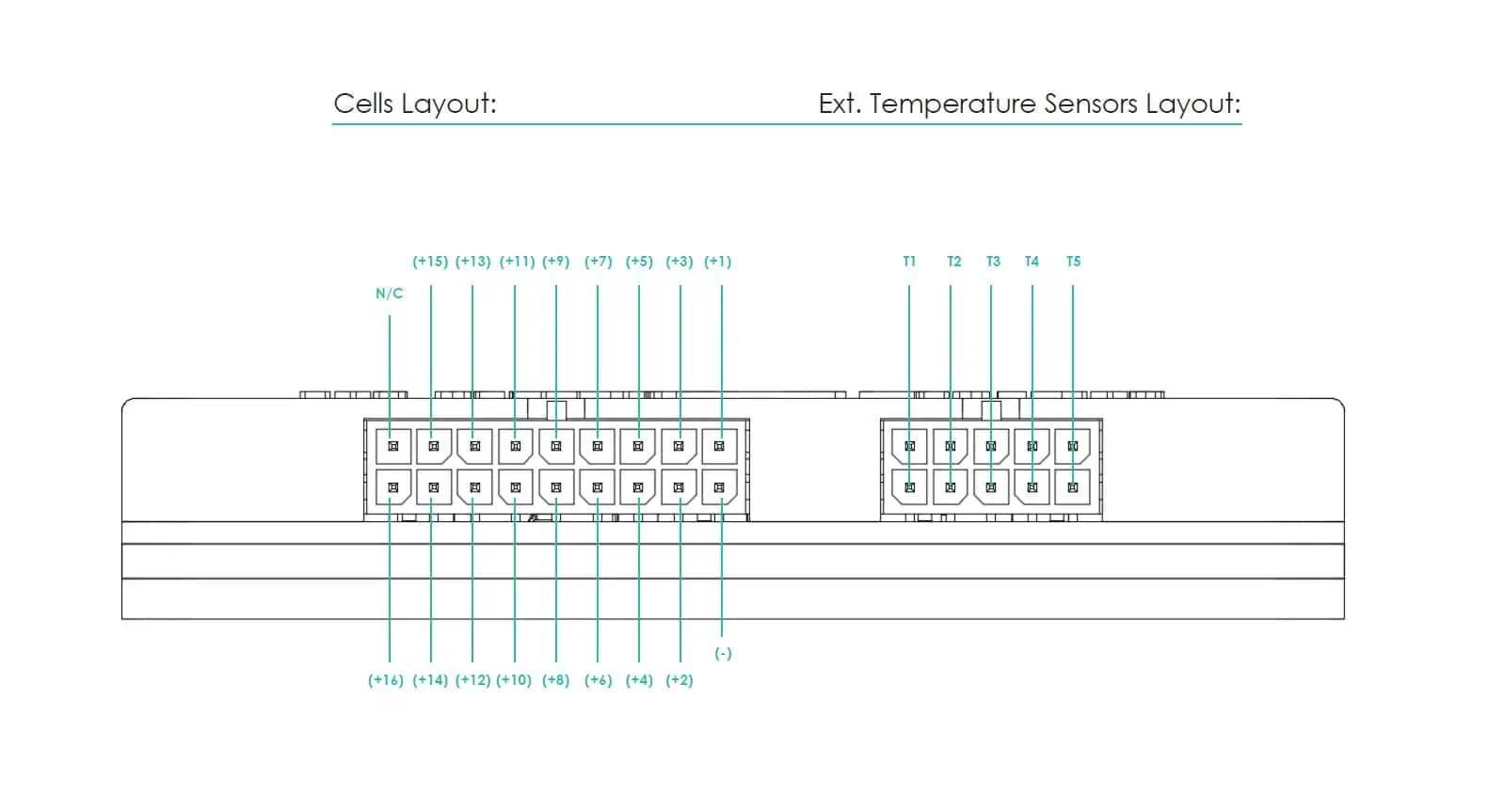

- Cell voltages measurement
- External 5 temperature sensors
- Balancing of the cells, 300 mA per each cell

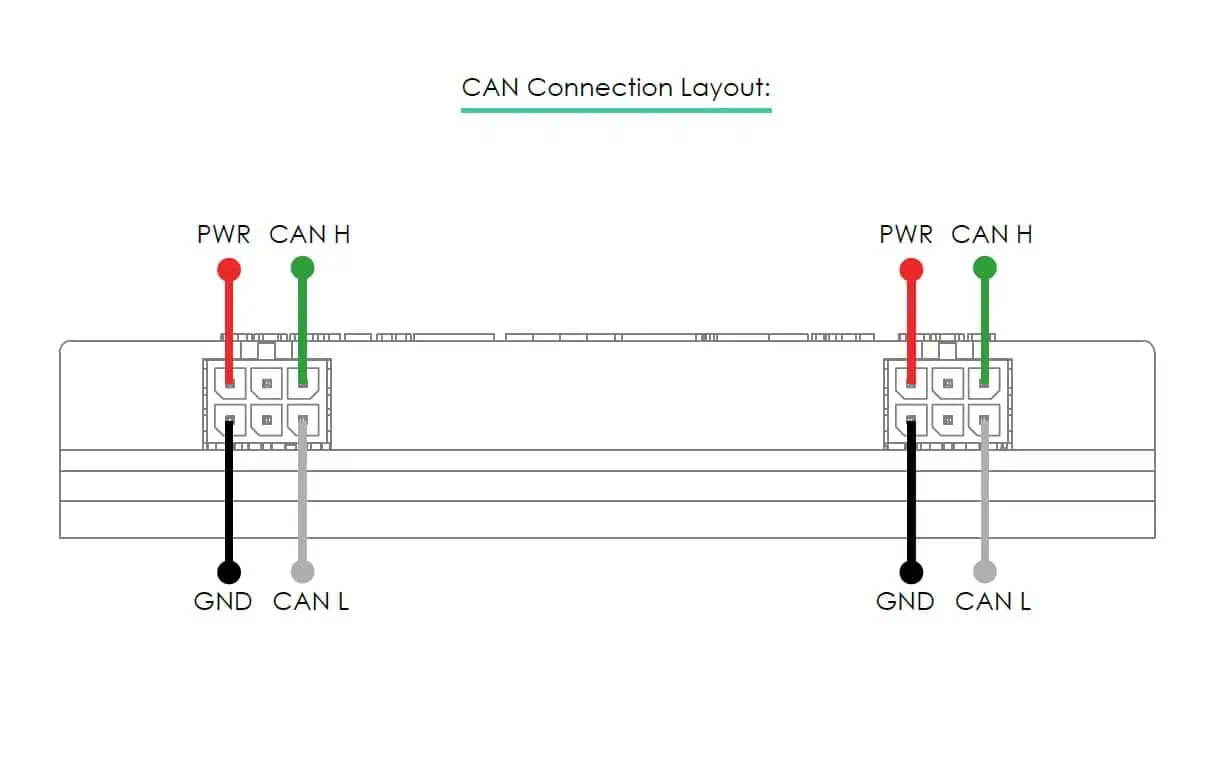

- 2 CAN connectors
Applications:
- Robots
- Scooters
- Bikes
- Motorcycles
- Lightweight vehicles
- Mobile storages
Specifications:
- Number of cells: 6 – 16
- Balancing current: 300mA
- Supply voltage: 12 – 67V
- Temperature sensors: 5x
- Two CAN connectors;
- Isolation between communication and battery side: 400V*
- Operating temperature: -40 to +80
- Dimensions: 90x61x16.5
- Communications bus: CAN
- Mounting holes: M4
* According to standard IEC 60664-1:2020. Direct contact between CCGM023A’s heatsink and conductive surfaces reduces its isolation rate to 350VDC
