EMUS Centralized Cell Group Module is a battery cells communication adapter (or “Slave unit”) equipped with two CAN connectors for easy BMS system assembly and integrated proprietary EMUS software allows data transfer within 100ms frequency. It also have 5 external temperature sensors to monitor ambient temperature.

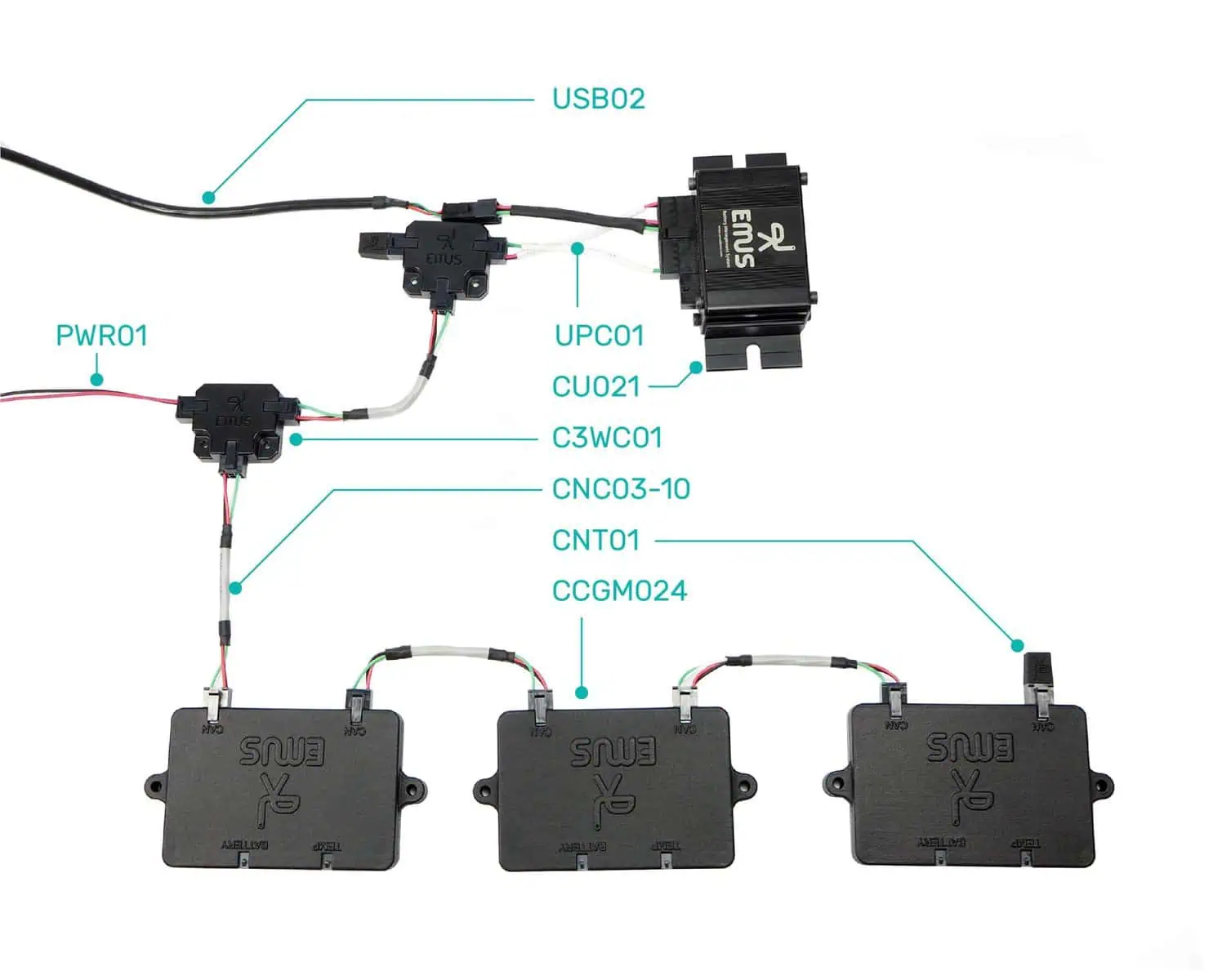

Each CCGM is capable of managing from 6 up to 16 lithium cells and total of 28 CCGM units can be connected in series, parallel, or mixed topology.

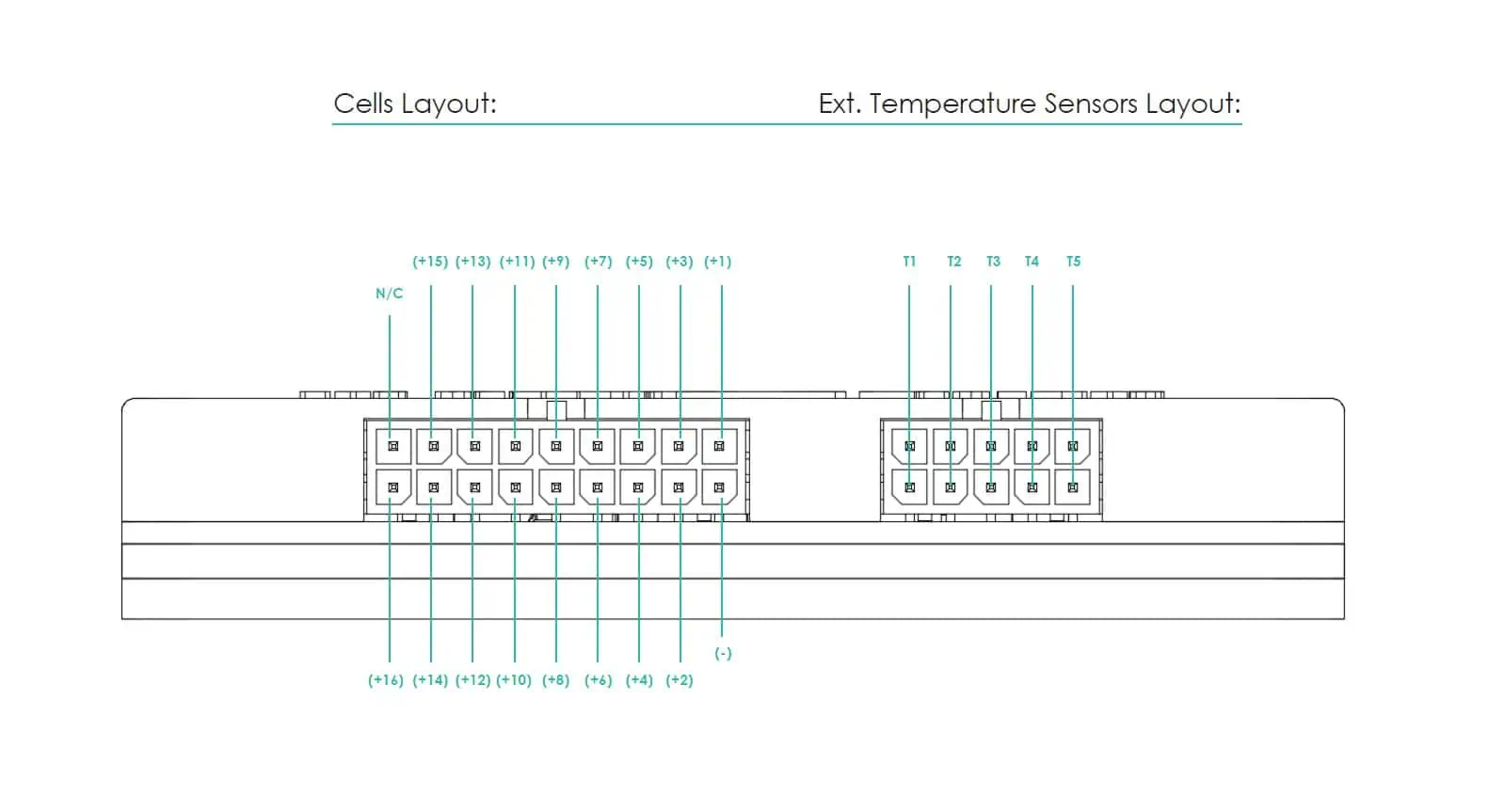

- Cell voltage measurement
- External 5 temperature sensors
- Balancing of the cells, 300 mA per each cell
- 2 CAN connectors
Applications:
- Energy Storage Systems (ESS)
- E-mobility applications
- Mobile Energy Storage Systems
Specifications:
- Number of cells: 6 – 16
- Balancing current: 300mA
- Supply voltage: 12 – 67V
- Temperature sensors: 5x

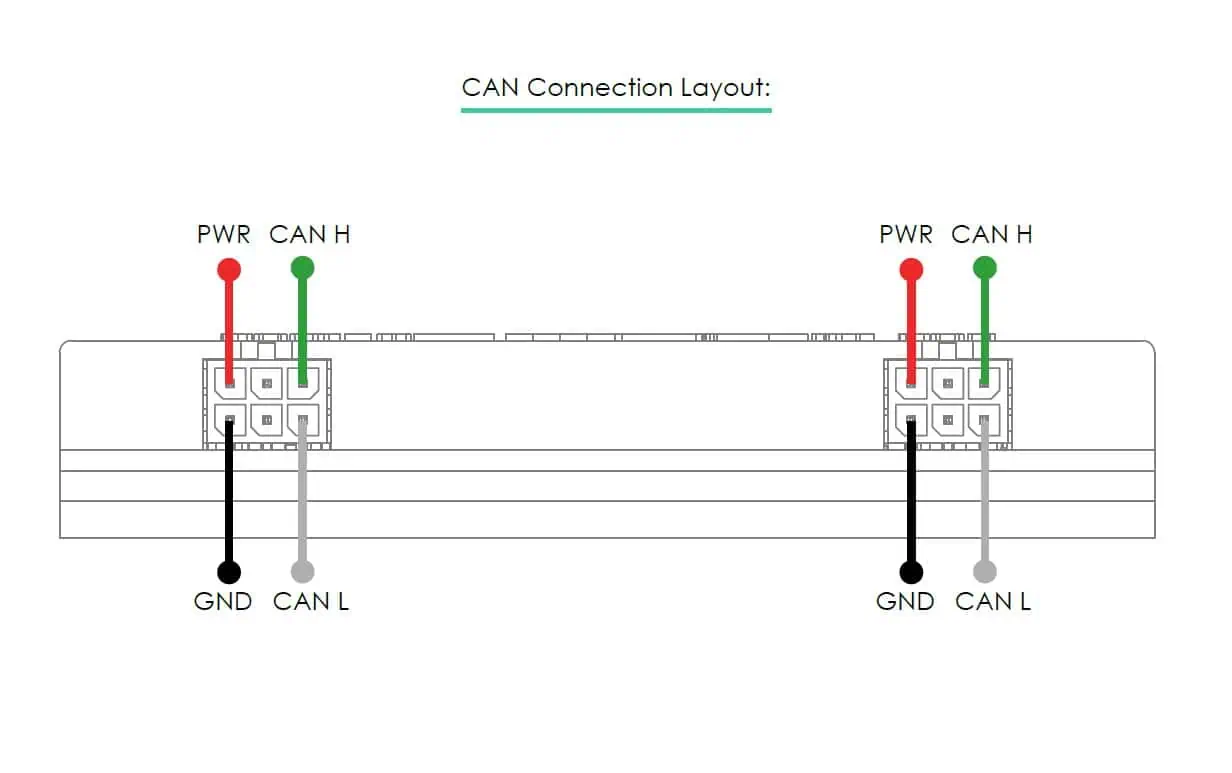

- Two CAN connectors;
- Isolation between communication and battery side 850V*
- Operating temperature: -40 to +80

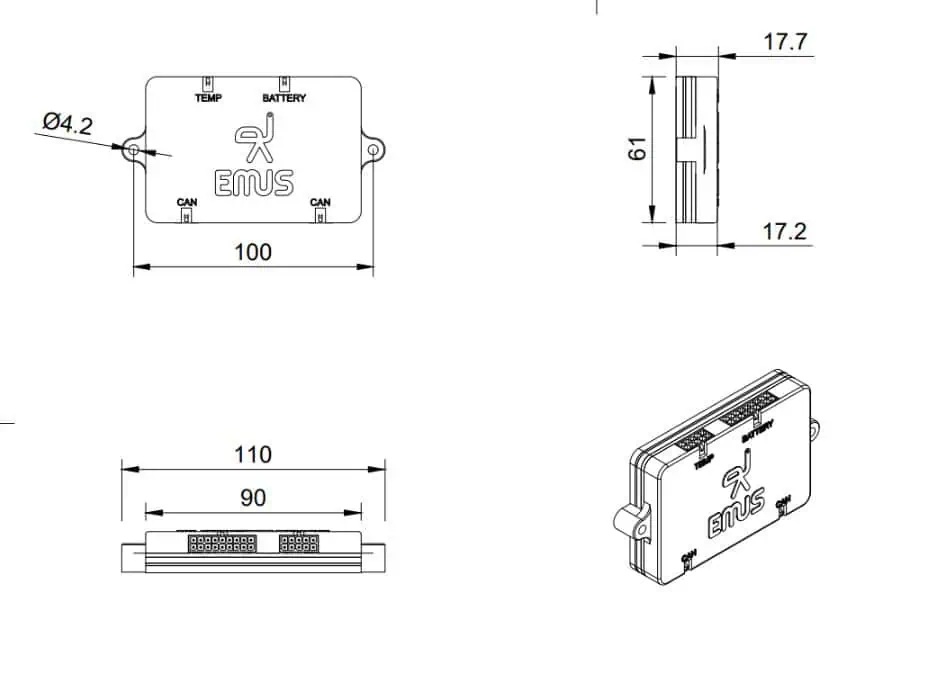

- Dimensions: 90x61x16.5
- Communications bus: CAN
- Mounting holes: M4
* According to standard IEC 60664-1:2020. Direct contact between CCGM024B’s heatsink and conductive surface without potential might decrease isolation endurance under environmental conditions classified as Pollution level 2 or superior.
